LED Stadium Light Trend in Table Tennis

Led stadium light Trend in table tennis

In recent years, LED stadium lighting has become the first choice for stadium lighting due to its high energy efficiency, intelligent control and excellent optical performance. The following are the main current and future trends:

1. High light efficiency and energy saving

- High light efficiency LED: Use LED chips above 200LM/W to reduce energy consumption (such as traditional 1000W metal halide lamps can be replaced by 500W LEDs).

- Energy-saving design: Combined with intelligent dimming, further reduce electricity bills (large venues can save up to 60%+ in annual electricity bills).

2. Intelligence and Internet of Things (IoT)

- Remote control: Adjust brightness and color temperature through mobile phones/Pads, and support group management (such as Philips ArenaConnect system).

- Sensor integration: Automatically adjust lighting (such as reducing the brightness to 30% when there is no one in the football field).

- 5G linkage: Synchronize with live broadcast equipment to optimize TV broadcast light (such as the dynamic HDR mode of the Champions League stadium).

3. Professional optical design

- Anti-glare: UGR<19 lens design to avoid glare for athletes (such as OSRAM ArenaVision series).

- Improved uniformity: illuminance uniformity of more than 0.7, meeting FIFA/NBA standards (such as World Cup venue requirements).

4. Multifunctional integration

- Emergency lighting: built-in UPS power supply, maintaining 50% brightness for 30 minutes after power failure (such as Shenzhen Universiade Center solution).

- Advertising projection: RGBW color mixing technology, dynamically displaying sponsor content (such as sideline advertising in NFL stadiums).

5. Long life and low maintenance

- 100,000 hours life: reduce replacement frequency (about 10 years maintenance-free, such as GE's LED stadium solution).

- Modular design: quickly replace damaged modules (maintenance time of some NBA venues is shortened by 70%).

6. Green and environmentally friendly

- Mercury-free design: RoHS compliant (compared to traditional lamps containing 50mg mercury).

- Recycling rate 90%+: such as Signify's circular economy plan.

7. Ultra-high-definition (4K/8K) adaptation

-CRI>90: Ensure the authenticity of TV colors (such as the 8K broadcast requirements of the Tokyo Olympics).

-Flicker-free technology: >400Hz refresh rate to avoid slow motion smearing.

8. Emerging market growth

China's policy drive: The "14th Five-Year Sports Plan" promotes the LED transformation of more than 50% of old stadiums.

Middle East projects: such as Qatar's 2022 World Cup venues, which use 100% LED.

9. Cost reduction

Price trend: $0.8/lm in 2015 → $0.2/lm in 2023 (DOE data), investment payback period <3 years.

Case reference

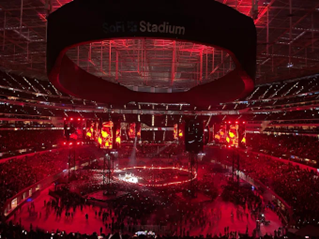

-SoFi Stadium (USA): 3000+ LED lights, supporting 100,000 lux event/concert mode switching.

Beijing Bird's Nest renovation: 65% energy saving, illumination increased to 2000lux (track and field)/1500lux (performance)).

Challenges

Initial investment: Still 30-50% higher than traditional lamps (but TCO is lower).

Heat dissipation management**: High-power models require liquid cooling design (such as Xicato player tunnel lights).

In the future, with the development of Micro LED and Li-Fi technology, sports lighting will further integrate communication and interactive functions. It is recommended to pay attention to UL certification (such as UL1598) and EN 12193 standard product selection.

LED Stadium Lighting for Table Tennis: Key Considerations & Trends

Table tennis (ping pong) requires precise lighting to ensure fast-moving balls are visible without glare or shadows. LED stadium lights are increasingly used in professional and recreational table tennis venues due to their superior performance. Below are the latest trends and technical requirements:

1. Key Lighting Requirements for Table Tennis

(1) Illuminance (Brightness) Standards

- Amateur/Recreational:300–500 lux

- Training/Club Level: 500–750 lux

- Professional/Competition:750–1,500 lux (ITTF recommends≥1,000 lux for televised events)

(2) Uniformity (No Shadows or Hotspots)

- Uniformity Ratio (U1 = Emin/Emax) ≥ 0.7(ITTF standard)

- No flicker (>3,000Hz), crucial for high-speed ball tracking

(3) Color Quality & Glare Control

- CRI (Color Rendering Index) ≥ 80(≥90 for broadcast)

- UGR (Unified Glare Rating) < 19 (to avoid player distraction)

- CCT (Correlated Color Temperature): 4,000K–5,700K (neutral to cool white)

2. LED Stadium Light Trends for Table Tennis

(1) High-Efficiency LED Modules (150–200 lm/W)

- Replaces traditional metal halide/HPS lights (e.g., 400W LED replaces 1,000W MH).

- Example: Philips MVF404 (400W LED, 60,000 lumens, UGR<16).

(2) Smart Lighting Controls

- Dimming (10–100%) for training vs. match modes.

- Wireless DMX/Zigbee control for instant brightness adjustments.

(3) Anti-Glare & Wide Beam Angles

- Asymmetric optics to focus light on the table (avoiding player eyes).

- Beam angles: 60°–90° for even table coverage.

(4) Flicker-Free & High-Speed Camera Compatibility

- >3,840Hz PWMfor slow-motion TV broadcasts (e.g., ITTF World Championships).

(5) Modular & Maintenance-Free Design

- 50,000–100,000 hours lifespan(10+ years).

- IP65 waterproof rating for indoor/outdoor use.

3. Recommended LED Lighting Layout for Table Tennis

|Venue Type |Fixture Height | Number of Lights | Lux Level |

| Home/Club | 3–4m     | 4–6 x 100W LED | 300–500 lux  |

| Training Hall | 5–6m    | 6–8 x 150W LED | 500–750 lux  |

| Professional Arena | 6–8m | 8–12 x 200W LED | 1,000–1,500 lux |

4.Installation Tips:

✔ Symmetrical mounting** (avoid shadows).

✔ No direct light into players' eyes (use baffles/louvers).

✔ Even spacing (e.g., 4 lights at 4 corners for a single table).

5. Future Trends

- Li-Fi Integration(high-speed data via light for live stats).

- AI-Powered Adaptive Lighting (auto-adjusts for TV/spectators).

- Ultra-Thin Micro-LED Panels (ceiling-mounted, glare-free).

6.Conclusion

For table tennis,high-CRI, flicker-free, and UGR<19 LED lights are essential. Professional venues should aim for ≥1,000 lux, while clubs can use **500–750 lux. Smart controls and modular designs further enhance efficiency.

7.what is the size of the table tennis room?

One of the aspects you need to consider is the size of the table tennis room. Everyone knows that the size requirement for playing table tennis is small in comparison to other sports. This is the reason why it can be played in any place.

Since you can almost play it anywhere, it doesn’t mean you should. You must play this sport in a proper facility with dedicated space and equipment.

For a standard competition, the minimum size you will need for playing table tennis is as follows:

National League- 33 feet x 16 feet 6 inches

International Events- 46 feet x 23 feet

Recreational Play- 28 feet x 13 feet

National Tournaments- 40 feet x 20 feet

Local League- 30 feet x 16 feet 6 inches

Would you like a specific lighting plan for your table tennis facility?
